3001-5000W3001-5000W

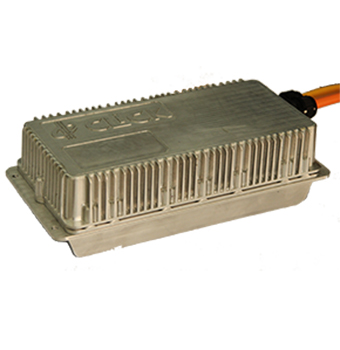

CPA3300001

► Universal AC Input / Full Range

► 3300W Intelligent Charger with CAN protocol

► Low Static Power Loss

 High Efficiency, Saving Energy

► Protection: OVP(I/P and O/P), OCP, SCP, OTP and reverse polarity

► Fast Change/ Full Charge Autodetect

Charging Method: CC and CV

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

100-264Vac

Operating Temperature

-40~60

Input Frequency

50/60Hz

Storage Temperature

-40~ 85

Power Factor

PF 0.99

(50%-100% Load)

Storage Humidity

5~95%

Input Current

≤16A

(Automatic Limit)

Cooling Mode

Intelligent Air Cooling

Output Voltage Range

210-420Vdc

MTBF

50,000Hrs @45°C (Telcordia SR-332)

Max. Charge Current

16A

Net Weight

5Kg-6.5Kg

Output Power

3.3KW

Safety Mark & Standards Complicance

QC/T895-2001,IEC61851-1,UL2202

Efficiency (%)

Average 93%, Max 95%

Protection Function

Input: UVP, OVP;

Output: UVP, OVP, Inversted Connection, SCP;

Others: OTP, Overload
