5-30W5-30W

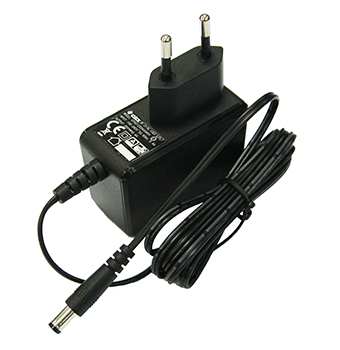

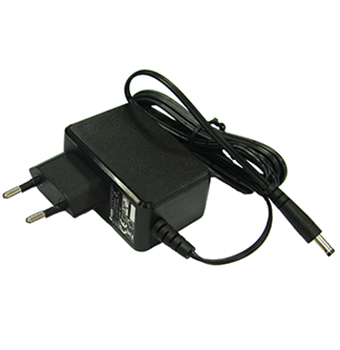

CPS012D260040V

Product Name: CPS012D260040V

Application range: communication network terminal

Product Features:

Universal AC Input / Full Range

► 12W Constant Current Circuit

► Protections Mode: OVP, OCP and SCP

► Light Weight, Small Volume

► High Reliability, MTBF > 50Khrs

► Compliance with Energy level VI

    ► 3 Years Warranty

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

0~45

Input Frequency

50/60Hz

Storage Temperature

-40~ 70

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<60A

Cooling Mode

Natural Cooling

Hold up Time

>5mS

MTBF

≧50,000Hrs @full load

(Telcordia SR-332)

Turn on Delay(s)

<3

Surge Voltage

±1KV

Rated Output Current

0.4A@26Vdc,CV

Insulation Voltage

3KVac @ Primary v.s. Secondary

Max. Output Voltage

28Vdc

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Output Current Tolerance

<±10%

Leakage Current

<250uA

Ripple and Noise (Vpp)

<200mV

Safety Mark & Standards Complicance

CE, IEC/EN60950

Efficiency (%)

>82.4% (Energy level VI)

EMC & EMI Standards Complicance

FCC Part 15 Class B; EN55022

Static Loss

<0.1W

Dimension (L*W*H)

62*40.5*30mm

Protection Function

OVP, OCP, SCP
