CPI135001

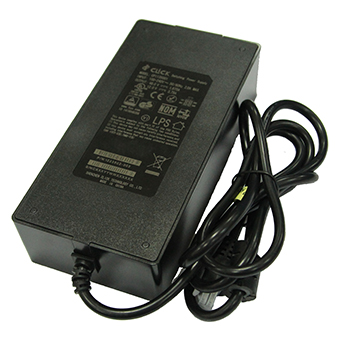

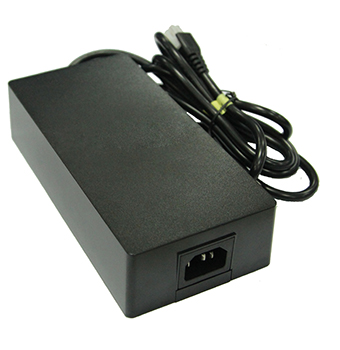

Product Name: CPI135001

Application range: communication network terminal

Product Features:

Universal AC Input / Full Range

► Dual Channels Constant Voltage Circuit

► Protections Mode: OVP, OPP, SCP and OTP

► Light Weight (about 745g), Small Volume

► High Reliability, MTBF > 350Khrs

► Compliance with Energy level VI

    ► 3 Years Warranty

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

0~40

Input Frequency

50/60Hz

Storage Temperature

-40~ 70

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<60A

Cooling Mode

Natural Cooling

Hold up Time

>20mS

MTBF

≧350,000Hrs @full load

(MIL-HDBK-217F)

Turn on Delay(s)

<3

Surge Voltage

±6KV

Rated Output Voltage

48Vdc/12Vdc

Insulation Voltage

1.5KVac @ Primary v.s. PE

Max. Output Current

1.875A/3.75A

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Output Voltage Tolerance

<±5%/±10%

Leakage Current

<2.5mA

Ripple and Noise (Vpp)

<500mV/100mV

Safety Mark & Standards Complicance

UL, CE, RCM, NOM, GS

Efficiency (%)

>86% (Energy level VI)

EMC & EMI Standards Complicance

FCC Part 15 Class B; EN55022

Static Loss

<0.3W

Dimension (L*W*H)

178.4*87*42mm

Protection Function

OVP, OPP, SCP, OTP
