301-500W301-500W

CPT45000102

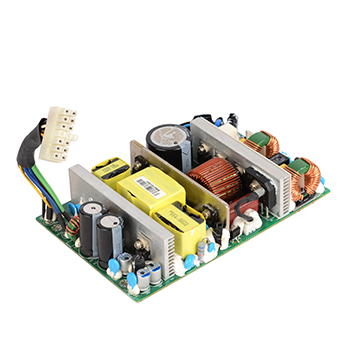

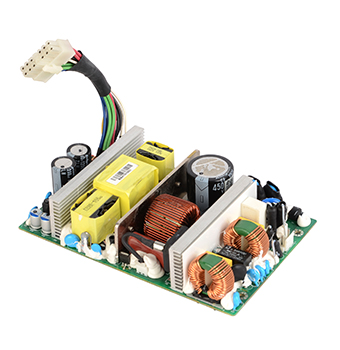

Product Name: CPT45000102

Application range: Communications industry

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit

Protections mode: OVP, OCP, Overload / Short Circuit, OTP

Light Weight, Small Volume

PCBA with Conformal Coating

Double Insulation, High Insulation Voltage Ensure Safety Usage.

High Efficiency and Low Noise Characteristics

    ► 5 Years Warranty

客户支持中心
  • 详细介绍

Product Specification:

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

-33~55

Input Frequency

50/60Hz

Storage Temperature

-40~ 85

Power Factor

>0.90

Storage Humidity

5~95%

Inrush Current

<60A

Cooling Mode

Natural Cooling

Turn on Delay(s)

<2

MTBF

250,000Hrs @35°C  (Telcordia   SR-332)

Hold up Time

>20mS

Surge Voltage

CM:±5kV, DM: ±3kV;

Rated Output Voltage / Current

12Vdc/4.2A; 54.5Vdc/6.8A

Insulation Voltage

3KVac @ Primary v.s. Secondary

Output Voltage Tolerance

<±5%/2%

Insulation Resistance

>100Mohm @ Primary v.s. Secondary @ 500Vdc

Ripple and Noise (Vpp)

<120mV/250mV

Safety Mark & Standards Complicance

EN60950, CB, CE, TUV, UL&cUL

Efficiency (%)

>87%

EMC & EMI Standards Complicance

FCC Part 15 Class B; EN55022

Protection Function

OVP, OCP, OLP, SCP, OTP

Dimension (L*W*H)

160*105*36.4mm



Model Series List:

Product Model

O/P Power

O/P Parameter

O/P Voltage Toler.

PF

Efficiency

CPT45000102

420W

12Vdc/4.2A; 54.5Vdc/6.8A

<±5%/2%

>0.90

>87%

CPT35000102

350W

12Vdc/4.2A; 54.5Vdc/4.6A

<±5%/2%

>0.90

>87%
