<120W<120W

CPA1200011

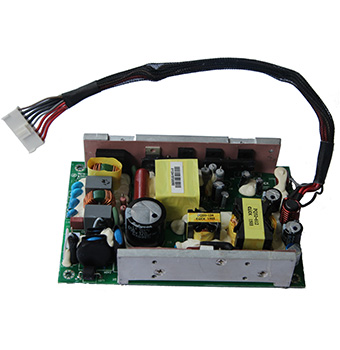

Product Name: CPA1200011

Application range: Communications industry

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit

Protections Mode: OVP, OCP, Overload / Short Circuit, OTP

PCBA with Conformal Coating

Double Insulation, High Insulation Voltage Ensure Safety Usage.

High Efficiency and Low Noise Characteristics

    5 Years Warranty


客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-300Vac

Operating Temperature

-40~65

Input Frequency

50/60Hz

Storage Temperature

-40~ 70

Power Factor

>0.9

Storage Humidity

5~95%

Turn on Delay(s)

<3

Cooling Mode

Natural Cooling

Rated Output Voltage / Current

12Vdc/10A

MTBF

250,000Hrs @25°C  (Telcordia   SR-332)

Output Voltage Tolerance

<±5%

Surge Voltage

CM:±6kV, DM: ±6kV;

Dynamic Overshoot

<±5%

Insulation Voltage

3KVac @ Primary v.s. Secondary

Ripple and Noise (Vpp)

<240mV

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Efficiency (%)

>89%

Safety Mark & Standards Complicance

EN60950, CB, CE, TUV, UL&cUL

Rise Time

<200mS

EMC & EMI Standards Complicance

FCC Part 15 Class B; CISPR 22

Hold up Time

>20mS

Dimension (L*W*H)

152.4*100.6*29mm

Protection Function

OVP, OCP, OLP, SCP, OTP
