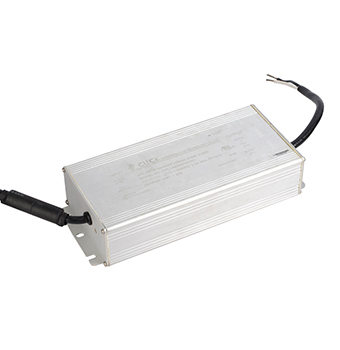

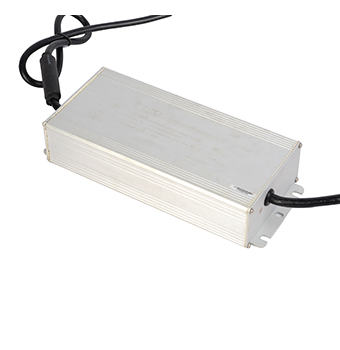

CPLV48024P001O1

Product Name: CPLV48024P001O1

Application range: Industrial lighting

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit for LED Driver

Wide Operating Range: -40~70

Double Insulation, High Insulation Voltage Ensure Safety Usage.

High Efficiency and Low Noise Characteristics

IP65 Waterproof (With Potting)

    5 Years Warranty

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

100-305Vac

Operating Temperature

-40~70

Input Frequency

50/60Hz

Storage Temperature

-40~ 80

Power Factor

>0.9

Storage Humidity

10~95%

Inrush Current

<60A

Cooling Mode

Natural Cooling

THD

<20%

MTBF

100,000Hrs @Tc=65@full load (Telcordia SR-332)

Turn on Delay(s)

<1

Surge voltage

CM:±4kV, DM: ±2kV;EN61000-4-5

Rated Output Voltage

24Vdc

Insulation Voltage

3.75KVac @ Primary v.s. Secondary

Max. Output Current

20A

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Output Voltage Tolerance

<±5%

Safety Mark & Standards Complicance

EN61347-1, UL8750, UL1012, CSA-C22.2 No.107.1

Ripple and Noise (Vpp)

<±2% Vout

EMC & EMI Standards Complicance

FCC Part 15 Class A; EN55015

Efficiency (%)

>92%

Dimension (L*W*H):

251*105*52mm

Protection Function

OVP, OCP, OLP, SCP, OTP
