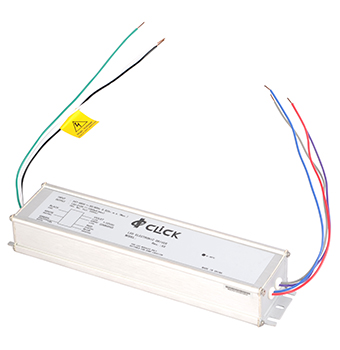

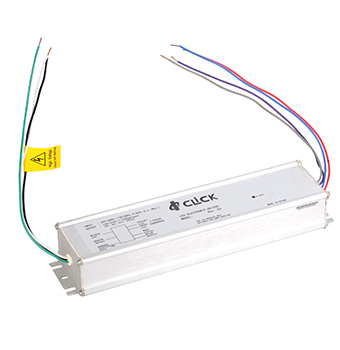

CPLI2301P0502M2

Product Name: CPLI2301P0502M2

Application range: Street lighting

Product Features:

Universal AC Input / Full Range

Built-in Constant Current Circuit for LED Driver with 0-10V PWM Dimming

Protections Mode: OVP, OCP, Overload / Short Circuit, OTP

Laser Print Model Label

Double Insulation, High Insulation Voltage Ensure Safety Usage.

High Efficiency and Low Noise Characteristics

IP65 Waterproof (Aluminium housing with potting)

    5 Years Warranty

客户支持中心
  • 详细介绍

Product Specification:

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

312-528Vac

Operating Temperature

Tc: -40~80

Input Frequency

50/60Hz

Storage Temperature

-40~ 85

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<80A

Cooling Mode

Natural Cooling

THD

<20%

MTBF

100,000Hrs @Tc=65@full load (Telcordia SR-332)

Turn on Delay(s)

<1

Surge Voltage

IEEE C.62.41-2002 Class C

Output Voltage Range

125-210Vdc

Insulation Voltage

3KVac @ Primary v.s. Secondary

Rated Output Current

1.05A

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Output Current Tolerance

<±5%

Safety Mark & Standards Complicance

EN61347-1, EN61347-2-13, UL/CSA60950-1, UL8750

Ripple Current

<120mA

EMC & EMI Standards Complicance

FCC Part 15/18 Class B; EN55015

Efficiency (%)

>87%

Leakage Current

0.75mA

Protection Function

OVP, OCP, OLP, SCP, OTP

Dimension (L*W*H):

266*67.5*40mm

Dim Voltage

0-10Vdc



Dim Value

10-100%Iout




Model Series List:

Product Model

O/P Power

O/P Voltage

O/P Current

PF

Efficiency

CPLI2301P0502M2

230W

125-210Vdc

1.05A

>0.9

>87%

CPLI2300P7002M2

150W

125-210Vdc

0.7A

>0.9

>87%
