CPLI0601P5001M1

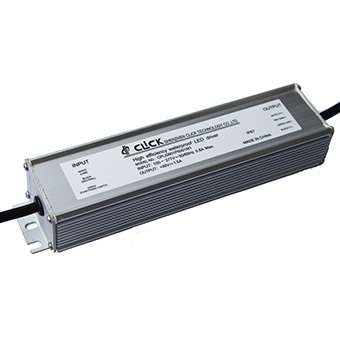

Product Name: CPLI0601P5001M1

Application range: Street lighting

Product Features:

Universal AC Input / Full Range

Built-in Constant Current Circuit for LED Driver with 0-10V Dimming

Laser Print Model Label

Protections Mode: OVP, OCP, Overload / Short Circuit, OTP

Double Insulation, High Insulation Voltage Ensure Safety Usage.

High Efficiency and Low Noise Characteristics

IP67 Waterproof (Aluminium housing with potting)

3 Years Warranty

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-305Vac

Operating Temperature

-40~60

Input Frequency

50/60Hz

Storage Temperature

-40~ 70

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<80A

Cooling Mode

Natural Cooling

THD

<20%

MTBF

500,000Hrs @25@full load

(MIL-HDBK-217F)

Turn on Delay(s)

<1

Surge Voltage

CM:±4kV, DM: ±2kV;EN61000-4-5

Output Voltage Range

24-40Vdc

Insulation Voltage

3.75KVac @ Primary v.s. Secondary

Rated Output Current

1.5A

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Output Current Tolerance

<±5%

Safety Mark & Standards Complicance

EN61347-1, EN61347-2-13, UL8750,   UL1310 and UL879

Ripple and Noise (Vpp)

<0.45A

EMC & EMI Standards Complicance

FCC part 15 Class B; EN55015

Efficiency (%)

>89%

Leakage Current

0.75mA

Dim Voltage

0-10Vdc

Dimension (L*W*H)

193.67mm×50.47mm×36.75mm

Dim Value

10-100%



Protection Function

OVP, OCP, OLP, SCP, OTP
