<60W<60W

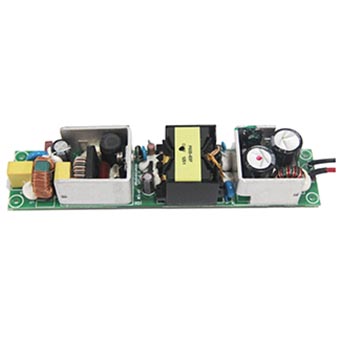

CPLV048024P0101

Product Name: CPLV048024P0101

Application range: landscape lighting

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit for LED Driver

Light Weight, Small Volume

High Efficiency and Low Noise Characteristics

PCB Coated with Varnish Paint (conformal coating)

Protections Mode: OVP, OCP, Overload / Short Circuit, OTP

    5 Years Warranty


客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

-30~60

Input Frequency

50/60Hz

Storage Temperature

-40~ 70

Power Factor

>0.88

Storage Humidity

10~95%

Inrush Current

<60A

Cooling Mode

Natural Cooling

Turn on Delay(s)

<1

MTBF

20,000Hrs (MIL-HDBK-217F)

Rated Output Voltage

24Vdc

Surge voltage

CM: ±2kV, DM: ±1kV, EN61000-4-5

Max. Output Current

2.0A

Insulation Voltage

3KVac @ Primary v.s. Secondary

Output Voltage Tolerance

<±10%

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Ripple and Noise (Vpp)

<2.4V

Safety Mark & Standards Complicance

EN61347-1, EN61347-2-13, UL1310

Efficiency (%)

>85%

EMC & EMI Standards Complicance

FCC part 15 Class B; EN55015

Protection Function

OVP, OCP, OLP, SCP

Dimension (L*W*H)

160*35*30mm
