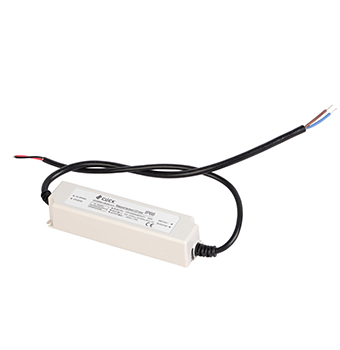

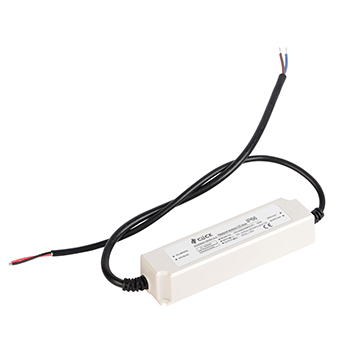

CPLV060048P01P1

Product Name: CPLV024048P01P1

Application range: Industrial lighting

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit for LED Driver

Light Weight, Small Volume

High Efficiency and Low Noise Characteristics

IP66 Waterproof (Plastic case with Potting)

    5 Years Warranty

客户支持中心
  • 详细介绍

Product Specification:

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

-40~60

Input Frequency

50/60Hz

Storage Temperature

-40~ 70

Power Factor

>0.9

Storage Humidity

10~95%

Inrush Current

<40A

Cooling Mode

Natural Cooling

Turn on Delay(s)

<1

MTBF

200,000Hrs @25(MIL-HDBK-217F)

Rated Output Voltage

48Vdc

Surge voltage

±1kV, EN61000-4-5

Max. Output Current

0.5A

Insulation Voltage

3.75KVac @ Primary v.s. Secondary

Output Voltage Tolerance

<±5%

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Ripple and Noise (Vpp)

<4.8V

Safety Mark & Standards Complicance

EN61347-1, EN61347-2-13, UL1950, UL1310

Efficiency (%)

>85%

EMC & EMI Standards Complicance

FCC Part 15 Class B; EN55015

Protection Function

OVP, OCP, OLP, SCP, OTP

Dimension (L*W*H)

162.5*43*32mm


Model Series List:

Product Model

O/P Power

O/P Voltage

O/P Current

PF

Efficiency

CPLV024048P01P1

24W

48Vdc

0.5A

>0.9

>85%

CPLV048048P01P1

48W

48Vdc

1A

>0.9

>85%

CPLV060048P01P1

60W

48Vdc

1.25A

>0.9

>85%
