CPLV01624P00301

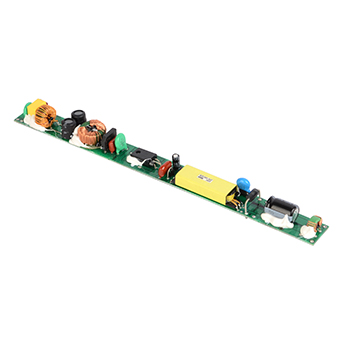

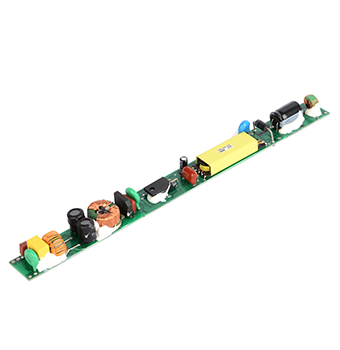

Product Name: CPLV01624P00301

Application range: landscape lighting

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit for LED Driver

Light Weight, Small Volume

High Efficiency and Low Noise Characteristics

PCB Coated with Varnish Paint (conformal coating)

Protections Mode: OVP, OCP, Overload / Short Circuit, OTP

    5 Years Warranty

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

-40~65

Input Frequency

50/60Hz

Storage Temperature

-40~ 85

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<40A

Cooling Mode

Natural Cooling

Turn on Delay(s)

<1

MTBF

200,000Hrs @25 (MIL-HDBK-217F)

Rated Output Voltage

24Vdc

Surge Voltage

CM: ±2kV, DM: ±1kV, EN61000-4-5

Max. Output Current

0.66A

Insulation Voltage

3.75KVac @ Primary v.s. Secondary

Output Voltage Tolerance

<±5%

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Ripple and Noise (Vpp)

<3.5V

Safety Mark & Standards Complicance

EN61347-1, EN61347-2-13, UL1310

Efficiency (%)

>85%

EMC & EMI Standards Complicance

FCC Part 15 Class A; EN55015

Protection Function

OVP, OCP, OLP, SCP, OTP

Dimension (L*W*H)

247.55*22*20.7mm
