CPLI0551P3501P1

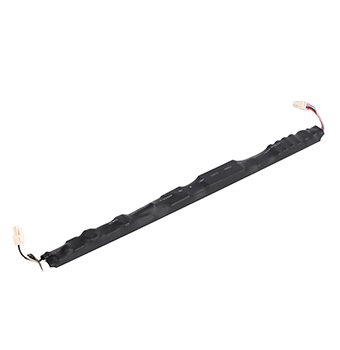

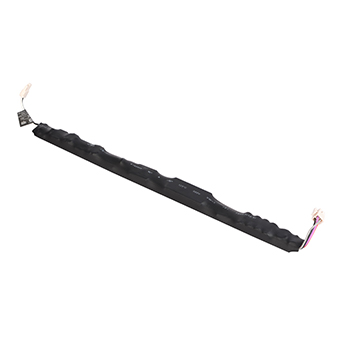

Product Name: CPLI0551P3501P1

Application range: Indoor lighting

Product Features:

Universal AC Input / Full Range

0-10V Dimming LED Driver

Built-in Constant Current Circuit for LED Driver

Ultra-thin, Light Weight, Small Volume

High Efficiency and Low Noise Characteristics

Protections Mode: OVP, OCP, Overload / Short Circuit, OTP

PCB Coated with Varnish Paint (conformal coating)

    ► 5 Years Warranty


客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-305Vac

Operating Temperature

-30~50

Input Frequency

50/60Hz

Storage Temperature

-40℃~ 70℃

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<80A

Cooling Mode

Natural Cooling

THD

<20%

MTBF

200,000Hrs @40 (MIL-HDBK-217F)

Turn on Delay(s)

<1

Surge voltage

±1kV, EN61000-4-5

Output Voltage Range

31.2-42.9Vdc

Insulation Voltage

3.75KVac @ Primary v.s. Secondary

Rated Output Current

1.3A

Insulation Resistance

>10Mohm @ Primary v.s. Secondary @ 500Vdc

Output Current Tolerance

<±10%

Safety Mark & Standards Complicance

UL8750, UL1310

Ripple and Noise (Vpp)

<10% Vout

EMC & EMI Standards Complicance

FCC part 15 Class B

Efficiency (%)

>85%

Dimension (L*W*H)

410*27*16.5mm

Protection Function

OVP, OCP, OLP, SCP, OTP
