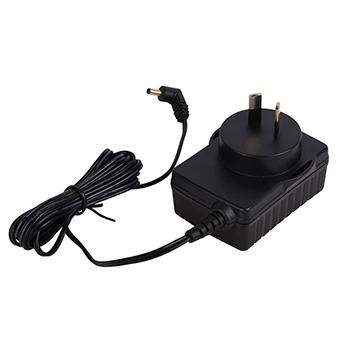

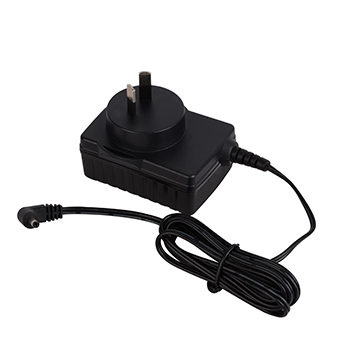

CPS024A120150V

Product Name: CPS024A120150V

Application range: Mobile phone, tablet computer

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit

Protections mode: OVP, OCP, Overload / Short Circuit

Light Weight, Small Volume

Apply to tablet computer

Compliance with CoC V

    5 Years Warranty


客户支持中心
  • 详细介绍

Product Specification:

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

0~45

Input Frequency

50/60Hz

Storage Temperature

-20~ 80

Inrush Current

<80A

Storage Humidity

5~95%

Hold up Time

>8mS

Cooling Mode

Natural Cooling

Turn on Delay(s)

<5

MTBF

≧100,000Hrs @Full Load

(MIL-HDBK-217F)

Rated Output Voltage

12Vdc

Surge voltage

CM: ±1kV, DM: ±1kV, IEC61000-4-5

Max. Output Current

1.5A

Insulation Voltage

3KVac @ Primary v.s. Secondary

Output Voltage Tolerance

<±5%

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Ripple and Noise (Vpp)

<200mV

Safety Mark & Standards Complicance

EN60950-1, CB, CE

Efficiency (%)

DoE Level VI

EMC & EMI Standards Complicance

EN55022 Class B; EN61000-3-2; EN61000-3-3

Static Loss

<0.075W

Leakage Current

<250uA

Protection Function

OVP, OCP, OLP, SCP, OTP

Dimension (L*W*H)

73.1*49.3*28.5mm


Model Series List:

Product Model

O/P Power

O/P Voltage

O/P Current

PF

Efficiency

CPS024A120150V

18W

12Vdc

1.5A

>0.90

CoC V

CPS024A120200V

24W

12Vdc

2A

>0.90
