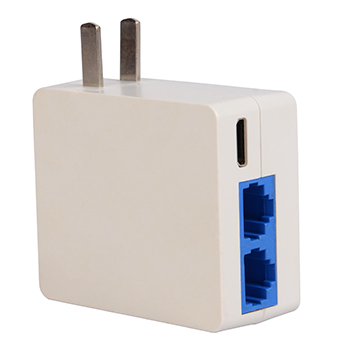

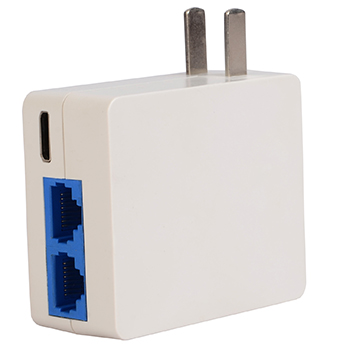

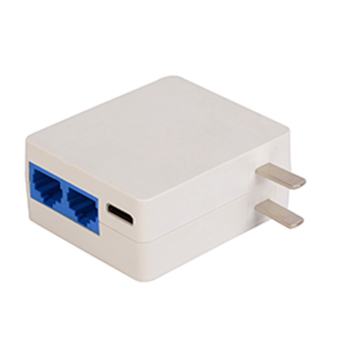

CPS018003

Product Name: CPS018003

Application range: XDSL Terminal

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit for LED Driver

Protections mode: OVP, OCP, Overload / Short Circuit

Light Weight, Small Volume

Apply to XDSL Terminal with LAN Port

Compliance with CoC V

5 Years Warranty Period


客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

176-264Vac

Operating Temperature

0~45

Input Frequency

50/60Hz

Storage Temperature

-40~ 70

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<30A

Cooling Mode

Natural Cooling

Hold up Time

>12mS

MTBF

≧100,000Hrs @full load

(Telcordia SR332)

Turn on Delay(s)

<2

Surge voltage

CM: ±1kV, DM: ±1kV, IEC61000-4-5

Rated Output Voltage

12Vdc

Insulation Voltage

3KVac @ Primary v.s. Secondary

Max. Output Current

1.5A

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Output Voltage Tolerance

<±5%

Safety Mark & Standards Complicance

CCC, GB4943

Ripple and Noise (Vpp)

<200mV

EMC & EMI Standards Complicance

EN55022 Class B; EN61000-3-2; EN61000-3-3

Efficiency (%)

80.29%

(meet to CoC V)

Leakage Current

<250uA

Static Loss

<0.075W

Dimension (L*W*H)

65.25*55.25*28mm

Protection Function

OVP, OCP, OLP, SCP, OTP
