CPS018002

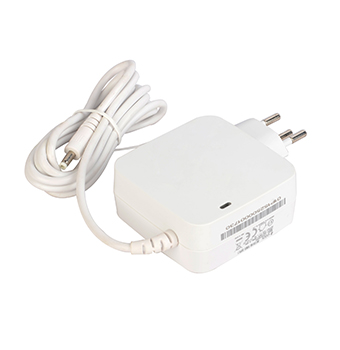

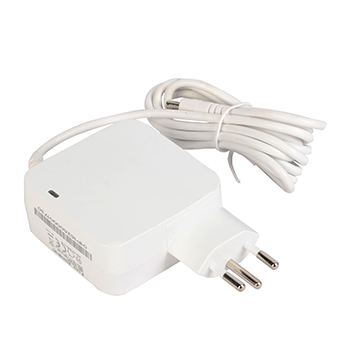

Product Name: CPS018002

Application range: Mobile phone, tablet computer

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit

Protections mode: OVP, OCP, Overload / Short Circuit

Light Weight, Small Volume

Apply to tablet computer

Compliance with CoC V

5 Years Warranty

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

180-264Vac

Operating Temperature

0~45

Input Frequency

50/60Hz

Storage Temperature

-20~ 85

Power Factor

>0.9

Storage Humidity

5~95%

Inrush Current

<60A

Cooling Mode

Natural Cooling

Hold up Time

>5mS

MTBF

≧100,000Hrs @full load

(MIL-HDBK-217F)

Turn on Delay(s)

<5

Surge voltage

CM: ±2.5kV, DM: ±2.5kV

Rated Output Voltage

12Vdc

Insulation Voltage

1.5KVac @ Primary v.s. Secondary

Max. Output Current

1.5A

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Output Voltage Tolerance

<±5%

Safety Mark & Standards Complicance

EN60950-1, CE,CB

Ripple and Noise (Vpp)

<120mV

EMC & EMI Standards Complicance

EN55022 Class B; EN61000-3-2; EN61000-3-3

Efficiency (%)

CoC V

Leakage Current

<250uA

Static Loss

<0.1W

Dimension (L*W*H)

67*67*30.7mm

Protection Function

OVP, OCP, OLP, SCP, OTP
