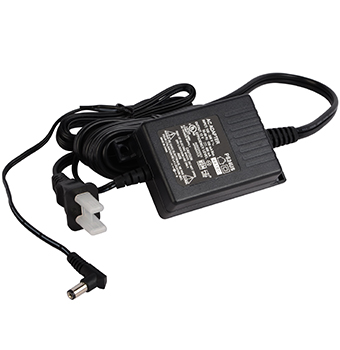

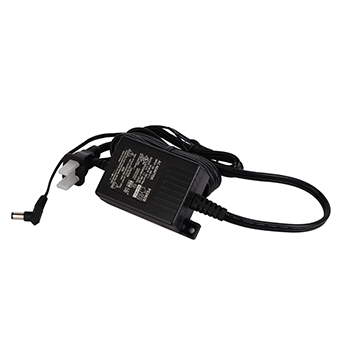

CPS009120040US

Product Name: CPS009120040US


Application range: Audio industries

Product Features:

Universal AC Input / Full Range

Built-in Constant Voltage Circuit

Protections Mode: OVP, OCP, Overload / Short Circuit

Light Weight, Small Volume

5W /12Vout Adapter

Compliance with DoE Level VI

5 Years Warranty Period


客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

0~45

Input Frequency

50/60Hz

Storage Temperature

-20~ 85

Power Factor

>0.9

Storage Humidity

10~95%

Inrush Current

<75A

Cooling Mode

Natural Cooling

Hold up Time

>10mS

MTBF

≧300,000Hrs @normal condition

(MIL-HDBK-217F)

Turn on Delay(s)

<3

Surge voltage

CM: ±1kV, DM: ±1kV, IEC61000-4-5

Rated Output Voltage

12Vdc

Insulation Voltage

3.75KVac @ Primary v.s. Secondary

Max. Output Current

0.4A

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Output Voltage Tolerance

<±5%

Safety Mark & Standards Complicance

UL60065

Ripple and Noise (Vpp)

<120mV

EMC & EMI Standards Complicance

EN55022FCC part 15 Class B; EN61000-3-2; EN61000-3-3

Efficiency (%)

CoC V

DoE VI

Leakage Current

<30uA

Static Loss

<0.075W

Dimension (L*W*H)

90*51.3*26.8mm

Protection Function

OVP, OCP, OLP, SCP, OTP
