CHA038002

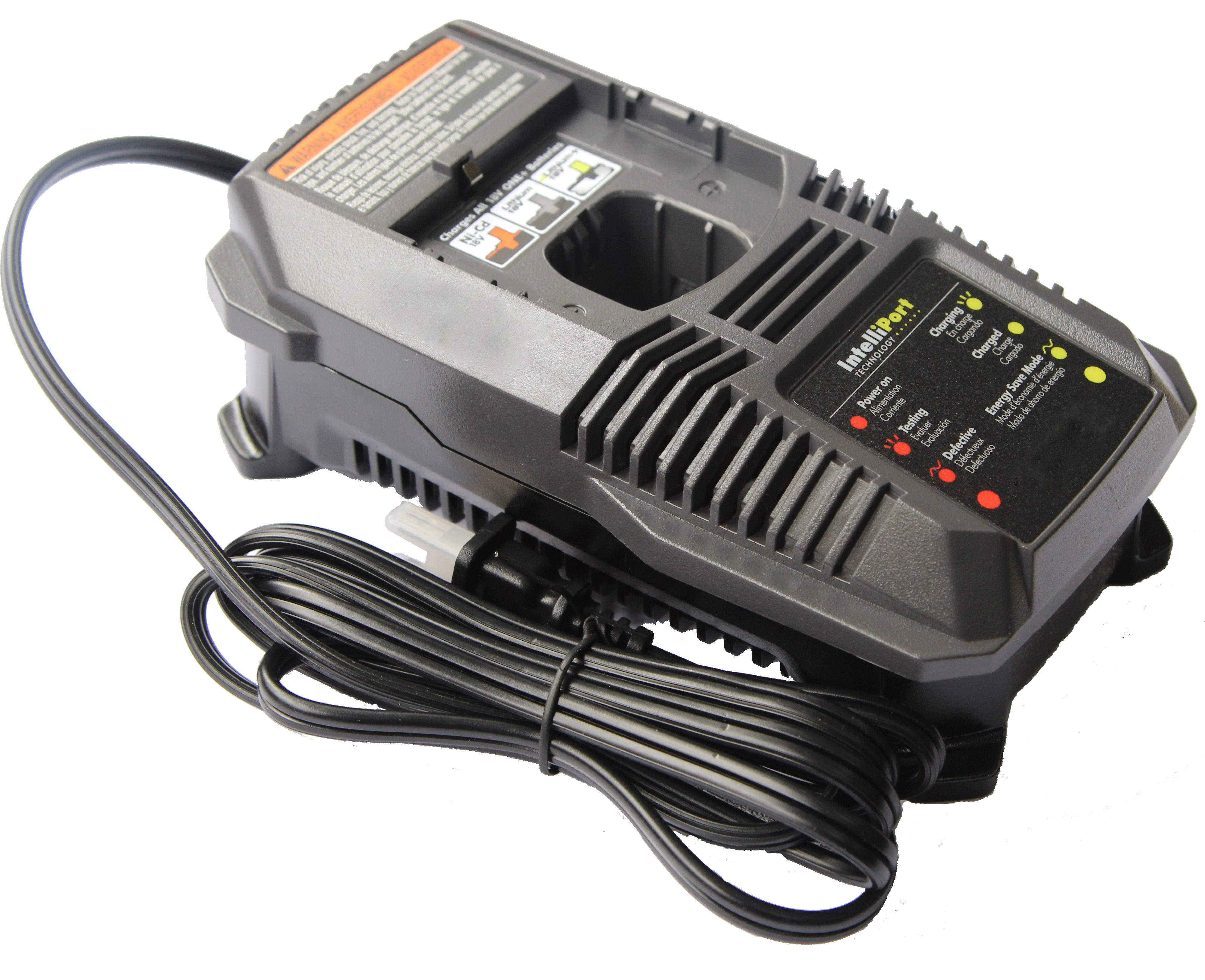

Product Name: CHA038002

Application range: E-tools

Product Features:

Universal AC Input / Full Range

Li-ion(5 cells)/Ni-Cd (15 cells) Battery Optional<18V with Single Port

Protections mode: OVP, OCP, Overload / Short Circuit, OTP

Charging Method: CC and CV

Various Operating Status Indicator

Double Insulation. High Insulation Voltage Ensure Safety Usage

     5 Years Warranty Period

客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

0~40

Input Frequency

50/60Hz

Storage Temperature

-20~ 70

Power Factor

>0.9

Storage Humidity

20~90%

Inrush Current

<50A@132Vin

Cooling Mode

Natural Cooling

Output Voltage

18Vdc

MTBF

20,000Hrs @normal   condition (MIL-HDBK-217F)

Max. Charge Current

1.8A

Surge Voltage

±1kV, IEC61000-4-5

Charge Current Tolerance

<±10%

Insulation Voltage

3KVac @ Primary v.s. Secondary

Balance Current

<200mA

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Voltage Balance Precision

<30mV

Leakage Current

<0.25mA

Static Loss

<0.5W

Safety Mark & Standards Complicance

UL1310

Ripple and Noise (Vpp)

<200mV

EMC & EMI Standards Complicance

FCC Part 15 Class B, EN55014

Efficiency (%)

>85%

Dimension (L*W*H):

187*105*61mm

Protection Function

OVP, OCP, SCP, OTP, Reverse Polarity Protection
