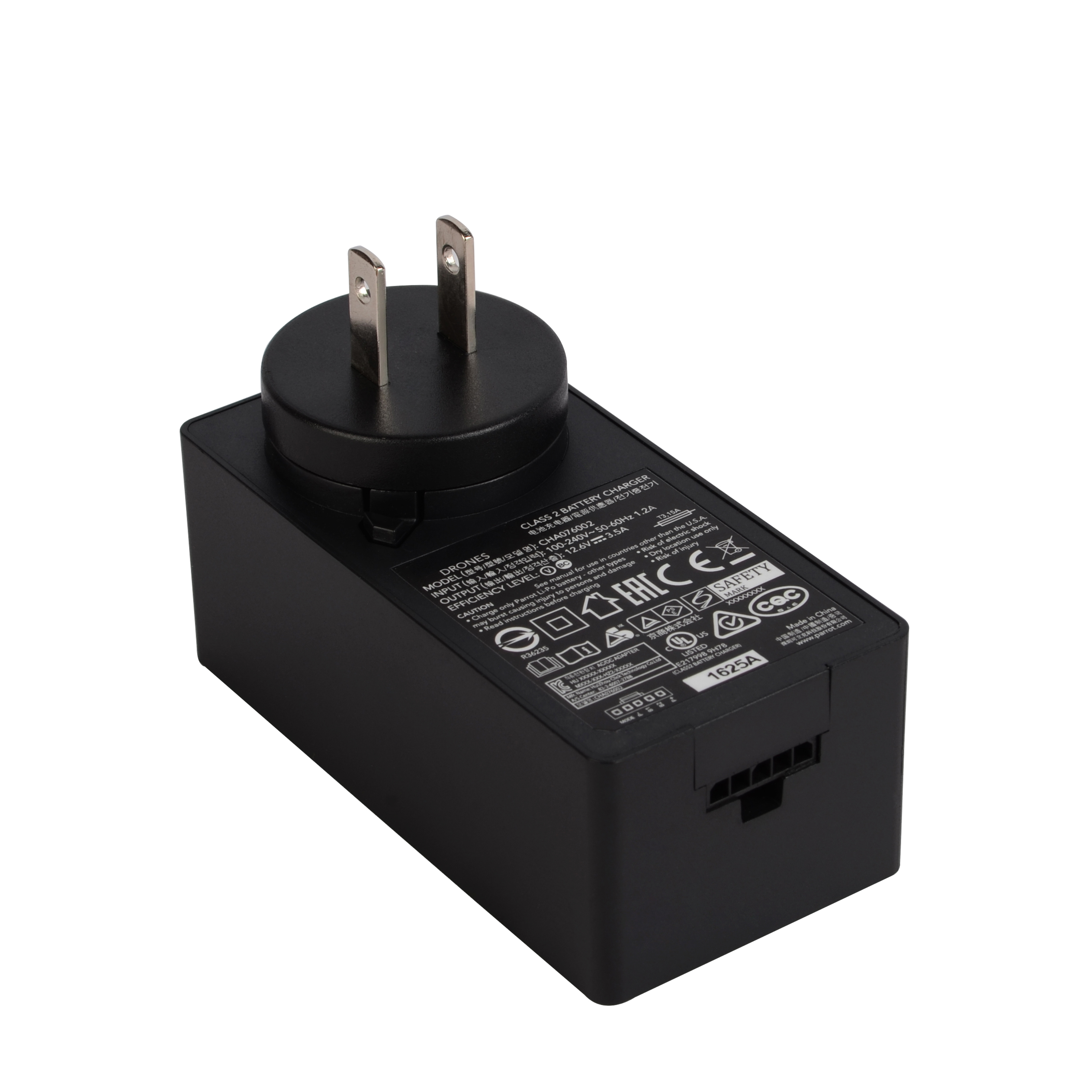

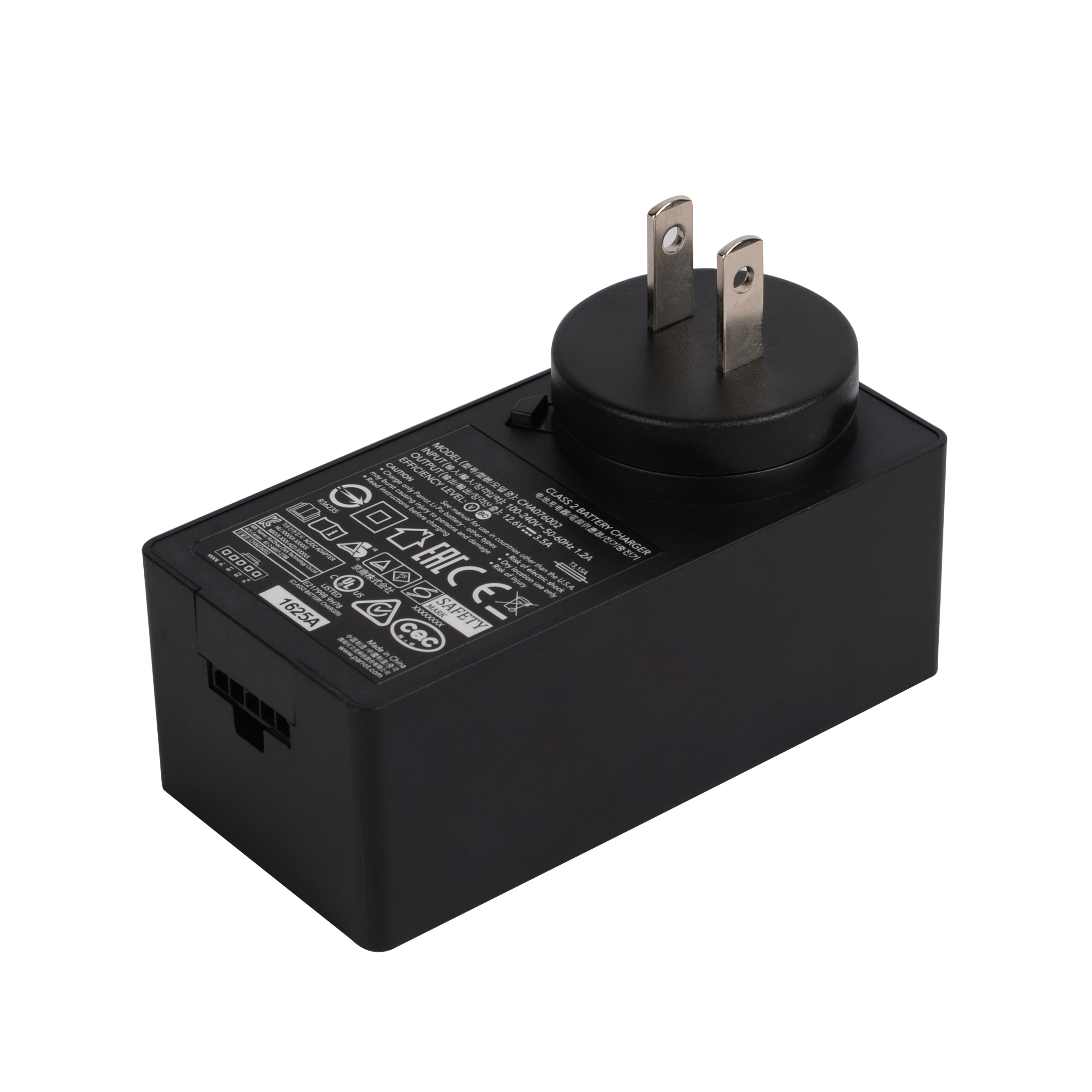

CHA076001

Product Name:CHA076001

Application range: UAV

Product Features:

Universal AC Input / Full Range

Li-Po Battery Charger with 45W

Replaceable AC Plug to Meet Different Country Needs

Light Weight, Small Volume

Charging Method: CC and CV

Various Operating Status Indicator

Double Insulation. High Insulation Voltage Ensure Safety Usage

3 Cells Battery Balance Charger

5 Years Warranty


客户支持中心
  • 详细介绍

Electrical Parameter

Environment & Safety Specification

Input Voltage Range

90-264Vac

Operating Temperature

0~40

Input Frequency

50/60Hz

Storage Temperature

-20~ 80

Power Factor

>0.9

Storage Humidity

10~90%

Inrush Current

<50A

Cooling Mode

Natural Cooling

Max. Output Voltage

12.6Vdc

MTBF

10,000Hrs @normal   condition (MIL-HDBK-217F)

Charge Current

3.5A

Surge Voltage

CM: ±1kV, DM: ±1kV, IEC61000-4-5

Charge Current Tolerance

<±10%

Insulation Voltage

3.6KVac @ Primary v.s. Secondary

Balance Current

<200mA

Insulation Resistance

>20Mohm @ Primary v.s. Secondary @ 500Vdc

Voltage Balance Precision

<20mV

Leakage Current

<0.25mA

Static Loss

<0.5W

Safety Mark & Standards Complicance

UL&cUL, TUV, CE, CB, CCC ;

Ripple and Noise (Vpp)

<200mV

EMC & EMI Standards Complicance

FCC Part 15 Class B, EN55022

Efficiency (%)

>87%

Dimension (L*W*H):

88*43*43mm

Protection Function

OVP, OCP, SCP, OTP, reverse polarity   protection
